Link dump October 2016

.
I added a hardware-centric blog to my blog list (on the left,), and here are some of the reasons:

defence-blog.com/news/china-develops-multiple-rocket-launcher-that-hides-in-container.html


A containerised multiple rocket launcher module is an intriguing idea, and I wrote about something similar a few times. It's clearly practical for guided missiles, but at the same time rather questionable for unguided or minimally course-correcting rockets. The traverse for any simple such design would be very, very minimal - maybe 15°. Enough for deliberate bombardments, not enough for quick reaction fires. MLRS type munitions couldn't be used without much effort, for they are front-loaded.
A full traverse containerised MRL module may very well be possible (with folding walls) but this would likely be rather elaborate and the expenses for such systems can be quite astonishing (see MLRS modernisation costs from years ago; hundreds of thousands of Euro per launcher).

- - -

(c) LimpidArmor

Such a see-through 'virtual reality' helmet mounted sight for tankers is overdue. This was already tried with the F-35 fighter, and much of aviation technology finds its way to tanks sooner or later. All-round cameras were already installed in Merkava IV years ago. It was obvious from the start that mounting multiple monitors was a quite unergonomic interim solution.
(Meanwhile, the German industry and procurement agency finally moved away from cathode ray tube monitors in the newest IFV Puma. *sigh*)

- - - - -

There's finally a towed/tethered sensor system for modern warships to extend the line of sight / horizon beyond what can be done with masts. Keyword DARPA TALONS:



www.uasvision.com/2015/05/14/darpa-tern-programme-produces-spin-offs/


Of course, this has been done before - as many 'innovations' - which made me expect such a thing for a long, long time. I probably didn't publish anything about this expectation because naval affairs aren't quite in my focus most of the time. I did expect it to take the shape of an autogyro anyway, for the first incarnation was an autogyro. Guess who did it. ;-)





The challenges for any such concept are quite obvious; you need enough payload (not much of a problem, as evidenced by Fa 330 Bachstelze which operated at 15 kts and lifted a man), you better supply electricity by copper cables from the ship and you need to stabilize whatever sensor you use (except maybe passive radar). I suppose this was technically feasible since the 1990's at the latest. The radar lifted this way cannot be nearly as powerful as the mast- or even superstructure-mounted ones, of course. Such radars can detect ships at long ranges, though - and I think they can also detect wave pattern disruptions caused by periscopes much easier than a much lower mast-mounted radar could.
150 m high electro-optical or imaging infrared sensors would also be VERY helpful with identification of boats and ships without a helicopter sorties.

One couldn't fully rely on such a system, though. It won't work in severe weather.

- - - - -

You want to criticize the Puma IFV or the procurement agency publicly?

- - - - -

I wrote a lot about Iskander, LORA and other such "under 500 km" missiles. The Americans are actually giving this approach a try and seem intent on replacing the ATACMS missiles (which don't necessarily age well in storage) with something in the 300-499 km range. This time it's likely cluster munitions ban compliant and may thus be interesting for the German army as well. After all, we have hardly any suitable munitions for our MARS/MLRS (afaik no more than 1,000 GUMLRS missiles were ever purchased by Germany).

I doubt that this will influence air warfare doctrine (of the U.S.A.F.) much, though.

S O
.

2016/10/28

The jerry can

.
A bit of technical-military history that shows how important little, cheap innovations can be:




This provides a good excuse to mention once again a very wise insight of Mr. Luttwak:

Great advances are highly visible and quickly provoke a powerful reaction of rival powers, but small, unimposing innovations may provide a lasting advantage.

In this case the importance of cans for storage and transportation of liquids was underestimated and the superior solution only recognised when it made itself felt on a campaign.

S O
.

2016/10/26

The biggest German foreign policy sin post-1945

.
Back in 1990/91 a coalition of 28 countries defeated the Iraqi military and drove it out of occupied Kuwait with roughly 2/3 U.S. troops. It seemed like a post-Cold War triumph for peace among nations at the time.
Some countries did not participate much or not at all with military means, but provided subsidies to support in particular the U.S. effort fiscally.

The U.S. Department of Defense has estimated the cost of the Gulf War at $61 billion.

Kuwait, Saudi Arabia and other Gulf states covered $36 billion.

Germany and Japan covered $16 billion.
(source CNN)

In hindsight, I think this was the biggest German foreign policy sin in many decades. Even the decision to de facto go to war against Yugoslavia in 1999 pales because without this earlier sin, it would likely not have happened.

To make a "won" war almost for free gave a terrible, utterly misleading signal to the people in the United States; a signal that war may be profitable. No doubt all that glory with a neat parade in best weather through flag-decorated streets, the testing of military equipment, the prestige gain et cetera was worth a very few billion dollars and about a hundred dead war heroes?


The U.S. had regained its appetite for great power games post-Vietnam already under Reagan and Bush sr before the 1990/91 Gulf War, but afterwards it was altogether different, public approval was much easier to get and sought after instead of rather sudden and previously unannounced military action. "Cruise missile diplomacy", the casual bombing of other countries, was born soon after 1991. Iraq had met all disarmament requirements by 1996, but wasn't left alone at all, and eventually broken for good in 2003.

What seemed like a moment of triumph for a world in which invading other countries was unacceptable and to be punished by the international community turned into the moment when one country decided that bombing and invading other countries does cost little, is fun and perfectly fine as long as it's the only country that does it. The German government helped to create that impression, with German public funds, fed by German taxpayers.

S O
.

2016/10/25

"War with Russia"

.
WTF?



.

2016/10/21

Colours and camouflages

.
Just a tiny info: There are a couple simulators on the web that allow you to look at images the way colourblind people see them. This one is an example, this is another one.

Flecktarn as seen by a blue-blind person (Tritanopia)
Naturally, I used this free opportunity to satisfy my curiosity about how camouflage patterns fare in the different modes*, but the outcome after using several photos with different camouflages and backgrounds was very simple: What matters more than anything else** is brightness and darkness. Shadows attract one's attention very much if they're in the wrong place.

Even tank camouflage colour patterns can be quite effective (at 1+ km), but the shadowy running gear still makes a tank easily spotted (and the warmth of the running gear of a moving or recently moved tank is easily recognizable with thermal sensors).

So in the end, the best camouflage pattern is still the one worn while hiding in a shadow of a large, inconspicuous object.

S O

*: This may be interesting to hunters, birdwatchers, wildlife photographers as well, since their camouflage will often look different to the wildlife than to themselves.
**: I need to mention that out-of-place or easily recognizable shapes are a big issue as well. This is the reason for why the Israelis use such irregular, odd-looking helmet covers - they make the helmet not look like a helmet any more.
.

2016/10/18

Acoustic sensors

.
Acoustic sensing with technical support had been introduced into warfare during the First World War. The British were early adopters of sound ranging to detect artillery batteries, used it much during the Second World War and they are still using acoustic ranging equipment for this purpose. This isn't expensive (except in personnel), but such a dedicated system is rather difficult to use in mobile warfare, similar to radio triangulation equipment.

Nowadays the much more accurate artillery radars can cope with the demand for artillery and mortar locating much better, albeit with the disadvantages of much higher purchase prices and treacherous radio emissions.

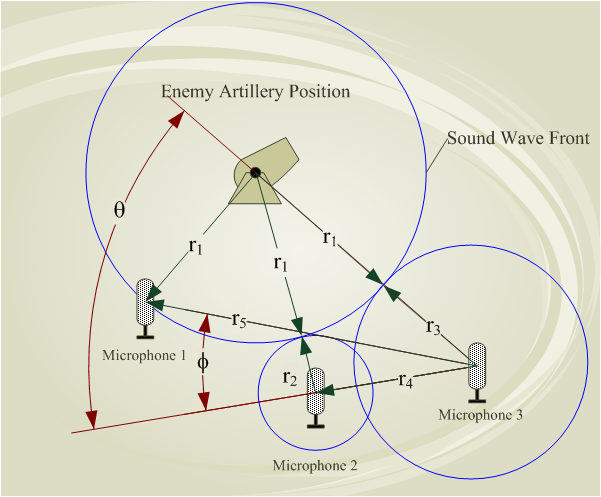

Basic sound ranging operation
It appears that after many decades with little improvement other than the use of electronic computing, the Microflown acoustic sensor (which is no microphone) may actually have brought substantial improvement to artillery sound ranging. A small sensor package with multiple Microflown sensors can apparently not only register the time of a sound event, but also the bearing - allowing for triangulation as with radio waves (instead of using the time difference of the sound arriving at spaced microphones as shown above). The applications for this kind of sensor are numerous.


A modern application for acoustic sensors has been the use for sniper (and more generally firearms) detection, I wrote about this a bit more in 2009. Most such systems appear to rely on the supersonic crack sound caused by a sniper bullet, rather than the muzzle blast's noise.

typical sniper detection microphone array
A third - once quite important - use of acoustic sensing was the detection of aircraft through clouds with ground-based sound amplifiers. These grew to ridiculous proportions quickly.





I'm sure the relief brought by radars was great.

Why am I writing about all this acoustics stuff?
Well, there's one application that doesn't seem to be widely known; a non-line of sight detection of helicopters with ranges of about 8-10 km. The only published device for this that I found is the Israeli HELISPOT. It was available in Mk 2 version back in 1993 already, and apparently Mk 3 around 2003. So it's not brand new.



Range claims go up to 25 km in optimal conditions, and apparently the Israelis have or had a second system of this kind as well (source).

I think this is quite interesting, because when you think of networked warfare with no radio comm outage and you have microphones and acoustic sensors in many places, you probably don't even need any such dedicated devices. I'm certainly no sound or electrical engineer, but I suppose microphones mounted on vehicles for one purpose (such as sniper detection) could also be used for other purposes (such as early warning about helicopters), and this coupled with automated accurate navigation and radio datalinks may create a network of acoustic sensors that serves artillery detection, mortar detection, moving tank detection, helicopter detection and sniper/rifleman detection alike.

The network may break down if either navigation or communication breaks down, but with the right technology even a mere three vehicles with acoustic sensors in a 200 x 200 m area might suffice to accomplish such detections, and you can usually maintain radio comm over such distances and navigation (or at least bearings and distances between vehicles + heading of the vehicles) isn't much of a problem unless the vehicles are moving.

Now combine this with another entirely passive warning device against aerial threats, such as the classic AD/AD or its de facto successor Rheinmetall FIRST* and you have a foundation for battlefield air defences that's impervious to classic, counter-Radar focused suppression of enemy air defences (SEAD). Now add a missile such as Bolide (RBS70NG) that's extremely hard to counter (laser beam rider) and cheap and the outcome is a battlefield short range air defence that keeps manned aerial threats at a respectful distance (~ 5 km) at most times.

Furthermore, all the warnings can be transmitted to the troops on the ground by radio. Modern tactical radios often have satellite navigation (GPS, Galileo) integrated, and could receive miniaturised inertial navigation systems to bridge the times of satellite navigation unavailability. The endangered troops could thus be warned about the nature of threat (jet, drone, helicopter, tank, even sniper) and the direction and would be able to minimise their exposure by exploiting concealment against that direction - or set up an ambush.**
This doesn't even require them to report their location into the radio network. The software-define radio would rather run an app that listens to all warning messages, knows the own position and alerts acoustically only if the threat is relevant to the radio's user. This wouldn't work at all times, but sure would be welcomed as helpful whenever it works.

The end result is a serious degradation of effectiveness of attack helicopters and SEAD in particular. Tank, combat aircraft and helicopters would have a harder time generating surprise. All sensed threats but those out of range would see their survivability degraded by such sensors and communications against which they can hardly do anything.

S O
defence_and_freedom@gmx.de

*: "Other IRST concepts were created for air defence purposes, such as ADAD in the United Kingdom, ANSAR-8 in the United States, VAMPIR in France, IRS-700 in Sweden, SPIRTAS in Israel and IRSCAN in the Netherlands". Source
**: The same approach to warning troops can be applied to incoming artillery and mortar ammunitions: Artillery locating radars may calculate the point of impact of ballistic projectiles a minute or more (other times mere seconds) before impact. This data may be used to send a area-related impact warning, so troops can take cover or get out of the targeted area, denying the surprise effect if not even the entire lethality to the attacker.
.

2016/10/15

Support vehicles self-protection

.
I did occasionally mention something that's deeply counterintuitive and unconventional. I oppose machineguns or whatever weapon on most vehicles, particularly supply lorries, but also on APCs and even HAPCs.

This saves personnel costs to some degree, but it also makes sense tactically in my opinion.

First, think about the conventional approach of the 1980's, a 360° machinegun (usually without shield) on an unprotected lorry cabin. Or on a Fuchs APC or M113 APC.

Fuchs APC with MG3 on 360° mount
Whoever did ever defend the decision to use machineguns on soft lorry cabs with no shield should have been beaten to pulp by the troops. Whoever did ever defend the idea to use machineguns on APCs without gunshield should have been kicked out of service and have all pensions revoked. That was seriously retarded nonsense. Well, shields were added once the Heer was sent into real wars, but this only proves the point that assuming competence or sanity of a peacetime army bureaucracy is a mistake. They are disasters waiting to reveal their nature, but get spared of such revealing events for yeas or decades.
The maxim "Wirkung vor Deckung" ('firepower first, cover secondary', my primary suspect for why there were no gunshields) is primitive bollocks and needs to be replaced by thinking NOW.

Now let's think about a reaction drill for APCs and similar, bulletproofed vehicles:
Assume there are no infantrymen inside. A company on a march with woodland 100 m on the left, crop field on the right comes under fire from within woodland. Infantry hides approx. 30 m inside the woodland for camouflage effect. The bullets don't penetrate, but manportable anti-tank weapons and munitions do. The marching was done at normal speed, 50-100 m intervals between vehicles.
Few if any other APCs would participate in the firefight because of the regular and necessary  spacing.

Hands up, who thinks a single machinegunner - manual or RCWS (remote controlled wepaon station) - would save the day?
I suppose he would at best fire blindly into the woodland area.

The story is quite the same if the ambushers are more numerous and engage multiple APCs over a frontage of hundreds of metres at once - every APC would be on his own, with hardly any support.

Now imagine the convoy comes under fire from the opposite direction - woodland 300 m distant behind  a field of wheat. Again, even a gunner with RCWS would hardly detect and hit anything. He certainly wouldn't suppress many either. Yet modern handheld "dumb" anti-tank weapons can hit an APC moving on a road at 200-600 m depending on type.

Nobody wants to feel defenceless in war, particularly not as soldier. Pro forma machineguns on vehicles provide a sense of being armed. It's deceiving. Such machineguns may have some (not much) utility in providing security while stationary, but that should better be done by pickets.

So what's my preferred alternative? Something like this:




(Better don't watch the other ROSY videos; one of them is killing your brain cells. Rapidly.)

Obviously, with this working well you have little use for a machinegun or any other gun on the vehicle. The smoke almost guarantees that a convoy under fire would let its rear vehicle reverse/turn and take another route, for driving through a killzone full of smoke would be a no-go. On the other hand; voluntarily going through a killzone is a no-go for almost all support vehicles.

This leaves mostly one particularly messy situation to discuss: What if the vehicles are stuck in the killzone, immobilised by obstacles and/or damage? I suppose it would then be foolish to stay inside even bulletproof vehicles, for stationary ones are particularly easy targets. One has then to decide whether to wreck the own vehicle or not, but either way one should evacuate it, grab a carbine and seek cover or concealment outside, maybe run. This, of course, works much better with the smoke solution than the machinegun solution, too.

Another bad situation is in hilly or mountainous terrain, where the shots may come from above. I suppose guns rarely if ever help much there either.

Or strong winds. I admit, the smoke is not going to last long under such conditions. Though (see first video) still possibly long enough for a  moving lorry to use its own smoke as concealment for several hundred metres.

And obviously, I'm not talking about occupation wars with harassing fires by untrained and marginally equipped warbands here. I'm rather thinking of attacks by bypassed hostile troops engaging a support unit in a European great power war.

Nobody needs solutions for wars of occupation because there's no point in wars of occupation.

About the manpower savings; you need 1-2 men in most vehicles anyway for operations. You would need 2-3 with a gunner. Now keep in mind that particularly the supply trains should probably have two shifts of crews, or else the lorries end up in ditches, buildings and other vehicles all the time. In this case 30 heavy lorries could make do with about 35 men with the smoke approach, but would need about 65 with the machinegun approach. Double that for two shifts so they can sustain resupply operations for two weeks and we're talking about savings of 60 men for 30 lorries. Applied to a full brigade wherever it works, this might save hundreds of men - or replace hundreds of lorry gunners with hundreds of infantrymen.

S O
.

2016/10/12

Army garrisons

.
( previous post: 2016-09 Bundeswehr garrisons)

Let's have a second look at garrisoning, and how it should be done on a blank sheet of paper - which is approx. the way it should be done with the long term in mind:

Important training areas (open fields, woodland, hilly terrain and for light infantry also swamps and mountains) that do not need to be erected should be close. In Germany this means that army manoeuvre brigades should probably be sited in Saxony and Saxony-Anhalt.

Specialised infrastructure is an important determinant as well. A well-sized combat training village cannot be raised next to all barracks for financial reasons. You either cluster the barracks whose troops need to train in such areas close to them or they will end up with too few training sessions there.
This leads to huge economies of scale benefits with clustering brigades together, with them sharing training areas.

Another benefit of such a layout would be that these brigades could frequently engage in scripted and free play exercises against each other or 2/3 of one against the other plus 1/3 of its own for a 1:2 inferiority in the defence and so on. It's no wonder that such exercises are rare when you site your brigade barracks hundreds of km apart.*

Then there are reserves. An army that's not meant to please itself in peacetime (but to deter and if need be fight for a quick status quo ante conflict ending) needs reserves, including entire reserve army manoeuvre formations.
This leads to a very promising scheme:
Two brigades are based together no more than 50 km apart with most or all important training areas within 100 km radius. Two inactive 'shadow' brigades are their sibling brigades, sharing the very same barracks and vehicle parks. The reserves' equipment would be kept in good order and modern, for the active brigade would take the reserves' vehicles (99-100% ready to go, regardless of recent exercises) in the event of crisis and deploy quickly. The reserve personnel would be called up, take the vehicles that the active brigade was using for training (typically 80-95% ready to go), repair them, execute a series of exercises to get ready, repair again and then deploy using the tank transporters that already helped the first wave to deploy.

This way one could even have up to four brigades in one region, using two brigade-sized barracks, one 'urban' combat training area, some training areas with woodland, woodland on hills and open fields.

An army of the German Heer's size would need no more than four such clusters, and they should probably be in Saxony-Anhalt and Saxony.

Now obviously, despite the efficiency in operations and layout, this would still cost billions of Euros for new barracks and training areas. We have less than two brigades worth of forces in those places so far. To pull off something like such a garrisons reform would require to convince the parliament to spend several billions not on extra troops or equipment - things that easily communicate extra combat power - but on better conditions for training and living. The army would even need to close several actually fine barracks that just happen to be in quite pointless areas.



This was meant for typical army brigades. A militia force would no doubt need barracks (or rather equipment pools) close to where the militiamen live, thus many close to population centres and few in very rural regions.
Army corps support units (that tend to have very road march-capable wheeled vehicles only) may also be dispersed, ideally between two or three clusters so they can join the brigade-level exercises with little effort.

S O

*: I preferred to not talk much about the nonsense of dispersing one brigade into multiple towns.
.

"Battery"

.
The artillery has its own way of calling companies, similar to units that descended from cavalry in some countries A company of artillery is called "battery" (Batterie). It took decades to shed the traditional Abteilung (~detachment) and call a German artillery battalion a "Bataillon" instead. The (West) German artillery also needed two generations to finally incorporate WW2 lessons and admit that joint fire support teams (forward observers) should be versatile and call for artillery, mortar and close air support instead of the army having separate observers with different terminologies.
So there's ample evidence that a certain conservatism and tradition-orientation exists in the artillery, including the German artillery.

Technology and procedures challenge another tradition of the artillery, and this time it does to the very heart of it:

Artillery guns (or multiple rocket launchers) used to be sited together in groups of 4-6 heavy weapons. Battles saw grande batteries from the 18th century onward, ad hoc concentrations where dozens if not hundreds of guns were sited together.

This is an obsolete approach. Such artillery concentrations create high value target areas and attract counterfires. There's no need for such grouping of guns any more anyway; as it was mostly done for economy. You needed less of the expensive radios, less land navigation effort (especially north finding) and less fire control personnel and equipment if you did all this for a battery instead of for every single gun.  Nowadays be have GPS/Galileo, inertial navigation systems, quality maps and radios are ubiquitous and relatively cheap.

Modern self-propelled guns are equipped with what they need to go into position to fire a mere minute or two after receiving a fire mission by radio. They can do so on their own, knowing where they are and which direction they're facing. They receive meteorological and fire mission data by radio and calculate their own fire solution by computer.


This finally begs the question: Why do we have batteries?

Nexter's Ceasar 2, 155 mm L/52 with autoloader
The tactical reason for batteries is gone. Whatever organisation the artillery should have should thus be based on administrative efficiency considerations. A modern SPG usually has a crew of 3-6 depending on type. A typical battery/company of six such guns would only have 18-36 (wo)men at the tip of the spear. That's rather a platoon. There's usually lots of overhead in such units beyond the SPG crews, but one could easily argue that an artillery battalion could or should look like this

HQ (with signallers)
  Meteorological and sensors company*
  Fires company** (including a small unit meant to scout future firing positions)
  Munitions company*** (with 15 ton 8x8 lorries)

I suppose such a reform could be used as a positive proof for a readiness to adapt to modern times by an artillery branch.

S O

*: "Sensors" should include artillery radar, acoustic triangulation sensors and tethered drones for muzzle flash triangulation. A good case could be laid out for having JFST and non-portable free-flying drones in a non-artillery unit directly under brigade HQ control, serving the HQ's, tanks', infantry's and artillery's thirst for information equally.
**:: SPG and MRL may be mixed. There's no reason to separate them any more. Even surface-to-air missiles could be employed by the company.
***: with PLS / MULTI /DROPS equipment. Meant to haul munitions from a corps logistics hub area and carry up to two days worth of munitions till needed. Then drop  the pallet next to a SPG and return to the hub. A very different mode of operation from the other units.
.
